gridpack::math::BaseVectorInterface< T, I > Class Template Reference

#include <vector_interface.hpp>

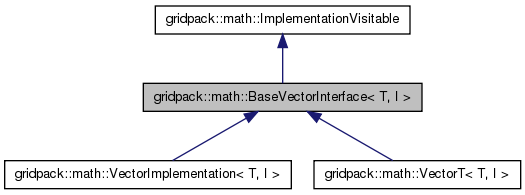

Inheritance diagram for gridpack::math::BaseVectorInterface< T, I >:

Collaboration diagram for gridpack::math::BaseVectorInterface< T, I >:

Public Types
typedef T	TheType
typedef I	IdxType
Public Member Functions
	BaseVectorInterface (void)
	Default constructor.
	~BaseVectorInterface (void)
	Destructor.
IdxType	size (void) const
	Get the global length.
IdxType	localSize (void) const
	Get the local length.
void	localIndexRange (IdxType &lo, IdxType &hi) const
	Get the local min/max global indexes.
void	setElement (const IdxType &i, const TheType &x)
	Set an individual element.
void	setElementRange (const IdxType &lo, const IdxType &hi, TheType *x)
	Set a range of elements (lo to hi-1).
void	setElements (const IdxType &n, const IdxType i, const TheType x)
	Set an several elements.
void	addElement (const IdxType &i, const TheType &x)
	Add to an individual element.
void	addElements (const IdxType &n, const IdxType i, const TheType x)
	Add to an several elements.
void	addElementRange (const IdxType &lo, const IdxType &hi, TheType *x)
	Add to a range of elements (lo to hi-1).
void	getElement (const IdxType &i, TheType &x) const
	Get an individual element.
void	getElements (const IdxType &n, const IdxType i, TheType x) const
	Get an several elements.
void	getElementRange (const IdxType &lo, const IdxType &hi, TheType *x) const
	Get a range of elements (lo to hi-1).
void	getAllElements (TheType *x) const
	Get all of vector elements (on all processes).
void	zero (void)
	Make all the elements zero.
void	fill (const TheType &v)
	Make all the elements the specified value.
void	scale (const TheType &x)
	Scale all elements by a single value.
double	norm1 (void) const
	Compute the vector L1 norm (sum of absolute value).
double	norm2 (void) const
	Compute the vector L2 norm (root of sum of squares).
double	normInfinity (void) const
	Compute the infinity (or maximum) norm.
void	abs (void)
	Replace all elements with its absolute value (complex magnitude).
void	real (void)
	Replace all elements with their real part.
void	imaginary (void)
	Replace all elements with their imaginary part.
void	conjugate (void)
	Replace all elements with their complex conjugate.
void	exp (void)
	Replace all elements with its exponential.
void	reciprocal (void)
	Replace all elements with its reciprocal.
void	ready (void)
	Make this instance ready to use.
void	print (const char *filename=NULL) const
	Print to named file or standard output.
void	save (const char *filename) const
	Save, in MatLAB format, to named file (collective).
void	loadBinary (const char *filename)
	Load from a named file of whatever binary format the math library uses.
void	saveBinary (const char *filename) const
	Save to named file in whatever binary format the math library uses.

Detailed Description

template<typename T, typename I = int>
class gridpack::math::BaseVectorInterface< T, I >

This defines the basic interface for vectors.

Member Typedef Documentation

template<typename T, typename I = int>

typedef I gridpack::math::BaseVectorInterface< T, I >::IdxType

The size/index type used

Reimplemented in gridpack::math::VectorT< T, I >, and gridpack::math::VectorImplementation< T, I >.

template<typename T, typename I = int>

typedef T gridpack::math::BaseVectorInterface< T, I >::TheType

The numeric type used

Reimplemented in gridpack::math::VectorT< T, I >, and gridpack::math::VectorImplementation< T, I >.

Constructor & Destructor Documentation

template<typename T, typename I = int>

gridpack::math::BaseVectorInterface< T, I >::BaseVectorInterface ( void )

Default constructor.

template<typename T, typename I = int>

gridpack::math::BaseVectorInterface< T, I >::~BaseVectorInterface ( void )

Destructor.

Member Function Documentation

template<typename T, typename I = int>

void gridpack::math::BaseVectorInterface< T, I >::abs ( void )

Replace all elements with its absolute value (complex magnitude).

template<typename T, typename I = int>

void gridpack::math::BaseVectorInterface< T, I >::addElement	(	const IdxType &	i,
		const TheType &	x
	)

Add to an individual element.

Local.

Parameters:

	i
	x

template<typename T, typename I = int>

void gridpack::math::BaseVectorInterface< T, I >::addElementRange	(	const IdxType &	lo,
		const IdxType &	hi,
		TheType *	x
	)

Add to a range of elements (lo to hi-1).

Local.

An example that adds to the the locally owned part of the vector:

 {.cpp}
 Vector v(...);
 int lo, hi;
 v.local_index_range(lo, hi);
 std::vector<ComplexType> x(v.local_size())
 // fill x with appropriate values
 v.addElement_range(lo, hi, &x[0]);

Parameters:

	lo	lowest global (0-based) index to fill
	hi	one more than the highest global (0-based) index to fill
	x	array of hi - lo values

template<typename T, typename I = int>

void gridpack::math::BaseVectorInterface< T, I >::addElements	(	const IdxType &	n,
		const IdxType *	i,
		const TheType *	x
	)

Add to an several elements.

Local.

Parameters:

	n
	i
	x

template<typename T, typename I = int>

void gridpack::math::BaseVectorInterface< T, I >::conjugate ( void )

Replace all elements with their complex conjugate.

template<typename T, typename I = int>

void gridpack::math::BaseVectorInterface< T, I >::exp ( void )

Replace all elements with its exponential.

template<typename T, typename I = int>

void gridpack::math::BaseVectorInterface< T, I >::fill ( const TheType & v )

Make all the elements the specified value.

template<typename T, typename I = int>

void gridpack::math::BaseVectorInterface< T, I >::getAllElements ( TheType * x ) const

Get all of vector elements (on all processes).

Collective.

This is an all gather operation and consequently will be slow. All of this vector's elements are gathered on all processes and placed in the in the specified array.

Parameters:

x

array of size() length to be filled with values

template<typename T, typename I = int>

void gridpack::math::BaseVectorInterface< T, I >::getElement	(	const IdxType &	i,
		TheType &	x
	)			const

Get an individual element.

Local.

Only local values may be retreived with this method.

Parameters:

	i	element's global, 0-based index
	x	element's value

template<typename T, typename I = int>

void gridpack::math::BaseVectorInterface< T, I >::getElementRange	(	const IdxType &	lo,
		const IdxType &	hi,
		TheType *	x
	)			const

Get a range of elements (lo to hi-1).

Local.

The elements whose indexes range from lo to hi-1 are retreived. Only local values may be retreived with this method. The length of the x array must be at least "hi - lo"

Parameters:

	lo	lowest element index
	hi	one more than the highest element index
	x	existing array of values to be filled with element values

template<typename T, typename I = int>

void gridpack::math::BaseVectorInterface< T, I >::getElements	(	const IdxType &	n,
		const IdxType *	i,
		TheType *	x
	)			const

Get an several elements.

Local.

Only local values may be retreived with this method.

Parameters:

	n	number of elements to get
	i	array of `n` global, 0-based indexes
	x	array of `n` values

template<typename T, typename I = int>

void gridpack::math::BaseVectorInterface< T, I >::imaginary ( void )

Replace all elements with their imaginary part.

template<typename T, typename I = int>

void gridpack::math::BaseVectorInterface< T, I >::loadBinary ( const char * filename )

Load from a named file of whatever binary format the math library uses.

Collective.

The underlying math library generally supports some way to save a Vector to a file. This will load elements from a file of that format.

Parameters:

filename

template<typename T, typename I = int>

void gridpack::math::BaseVectorInterface< T, I >::localIndexRange	(	IdxType &	lo,
		IdxType &	hi
	)			const

Get the local min/max global indexes.

Local.

The minimum index in the first global (0-based) index owned by the local process. The maximum is one more than the last global index owned. An example of usage:

 {.cpp}
     int lo, hi;
     my_vector.local_index_range(lo, hi);
     for (int i = lo; i < hi; ++i) {
       ComplexType x;
       x = ...;
       v.setElement(i, x);
     }

Parameters:

	lo	first (0-based) index of locally owned elements
	hi	one more than the last (0-based) index of locally owned elements

template<typename T, typename I = int>

IdxType gridpack::math::BaseVectorInterface< T, I >::localSize ( void ) const

Get the local length.

Returns:: local vector length

template<typename T, typename I = int>

double gridpack::math::BaseVectorInterface< T, I >::norm1 ( void ) const

Compute the vector L1 norm (sum of absolute value).

template<typename T, typename I = int>

double gridpack::math::BaseVectorInterface< T, I >::norm2 ( void ) const

Compute the vector L2 norm (root of sum of squares).

template<typename T, typename I = int>

double gridpack::math::BaseVectorInterface< T, I >::normInfinity ( void ) const

Compute the infinity (or maximum) norm.

template<typename T, typename I = int>

void gridpack::math::BaseVectorInterface< T, I >::print ( const char * filename = NULL ) const

Print to named file or standard output.

Collective.

The format is dependent on the specific vector implementation.

Parameters:

filename

optional file

template<typename T, typename I = int>

void gridpack::math::BaseVectorInterface< T, I >::ready ( void )

Make this instance ready to use.

template<typename T, typename I = int>

void gridpack::math::BaseVectorInterface< T, I >::real ( void )

Replace all elements with their real part.

template<typename T, typename I = int>

void gridpack::math::BaseVectorInterface< T, I >::reciprocal ( void )

Replace all elements with its reciprocal.

template<typename T, typename I = int>

void gridpack::math::BaseVectorInterface< T, I >::save ( const char * filename ) const

Save, in MatLAB format, to named file (collective).

Collective.

Parameters:

filename

template<typename T, typename I = int>

void gridpack::math::BaseVectorInterface< T, I >::saveBinary ( const char * filename ) const

Save to named file in whatever binary format the math library uses.

Collective.

The underlying math library generally supports some way to save a Vector to a file. This routine uses whatever format that can be read by loadBinary().

Parameters:

filename

template<typename T, typename I = int>

void gridpack::math::BaseVectorInterface< T, I >::scale ( const TheType & x )

Scale all elements by a single value.

template<typename T, typename I = int>

void gridpack::math::BaseVectorInterface< T, I >::setElement	(	const IdxType &	i,
		const TheType &	x
	)

Set an individual element.

Local.

This overwrites the value at the specified index. ready() must be called after all setElement() calls and before using the vector.

Parameters:

	i	element global (0-based) index
	x	value to place in vector

template<typename T, typename I = int>

void gridpack::math::BaseVectorInterface< T, I >::setElementRange	(	const IdxType &	lo,
		const IdxType &	hi,
		TheType *	x
	)

Set a range of elements (lo to hi-1).

Local.

An example that fills the locally owned part of the vector:

 {.cpp}
 Vector v(...);
 int lo, hi;
 v.local_index_range(lo, hi);
 std::vector<ComplexType> x(v.local_size())
 // fill x with appropriate values
 v.setElement_range(lo, hi, &x[0]);

Parameters:

	lo	lowest global (0-based) index to fill
	hi	one more than the highest global (0-based) index to fill
	x	array of hi - lo values

template<typename T, typename I = int>

void gridpack::math::BaseVectorInterface< T, I >::setElements	(	const IdxType &	n,
		const IdxType *	i,
		const TheType *	x
	)

Set an several elements.

Local.

This places (overwrites) several elements, with arbitrary indexes, in the vector. ready() must be called after all setElement() calls and before using the vector.

Parameters:

	n	number of elements to place in vector
	i	pointer to an array of `n` global (0-based) indexes
	x	pointer to an arry

template<typename T, typename I = int>

IdxType gridpack::math::BaseVectorInterface< T, I >::size ( void ) const

Get the global length.

Returns:: global vector length

template<typename T, typename I = int>

void gridpack::math::BaseVectorInterface< T, I >::zero ( void )

Make all the elements zero.

The documentation for this class was generated from the following file:

vector_interface.hpp

gridpack::math::BaseVectorInterface< T, I > Class Template Reference

Public Types

Public Member Functions

Detailed Description

template<typename T, typename I = int> class gridpack::math::BaseVectorInterface< T, I >

Member Typedef Documentation

Constructor & Destructor Documentation

Member Function Documentation

template<typename T, typename I = int>
class gridpack::math::BaseVectorInterface< T, I >
